Power Source 12-5V/3A Always ON (RED) v2

Power Source 12-5V/3A Always ON (RED) v2

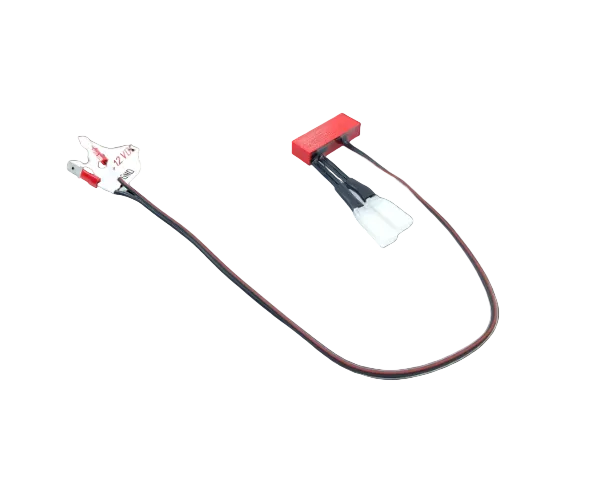

The Power Source 12-5V/3A Always ON (RED) v2 is a dedicated supply unit designed to deliver a constant 12.5 V at up to 3 A output for Carpe Iter CI Pads (v1, v3, v4, v4b). Unlike standard power sources that automatically switch off under low voltage conditions, this “Always ON” version ensures uninterrupted power delivery from the motorcycle electrical system.

Continuous Power Delivery

This power source is engineered to overcome problems with auto-switching power supplies on motorcycles that cannot maintain voltage levels above the switching threshold under load. The constant 12.5 V output supports navigation pads and accessories that require stable power during long rides or prolonged usage.

Installation & Usage

• 12 V input cable length: 39 cm / 15″
• 2 × 5 V output cables, each 5 cm / 2″ long
• Connects to the motorcycle electrical system for uninterrupted power
• Can be used with ignition-operated auxiliary outlets to avoid battery drain

Warning & Best Practice

When connected directly to the bike battery, the power source will draw current continuously, which may lead to significant battery discharge if the engine is not running. To prevent battery drain, connect the unit to an ignition-activated auxiliary power outlet, observing the outlet’s maximum power rating as specified by your motorcycle manual.

Benefits

• Stable 12.5 V / 3 A output for reliable device operation
• Designed for prolonged “Always ON” operation
• Ideal for navigation and electronic accessories
• Optimised for Carpe Iter CI Pad versions
