F2R Y1000-001 Digital Roadbook & GPS Navigator

Ready for pre-order!

Expected delivery time from mid-March 2025!

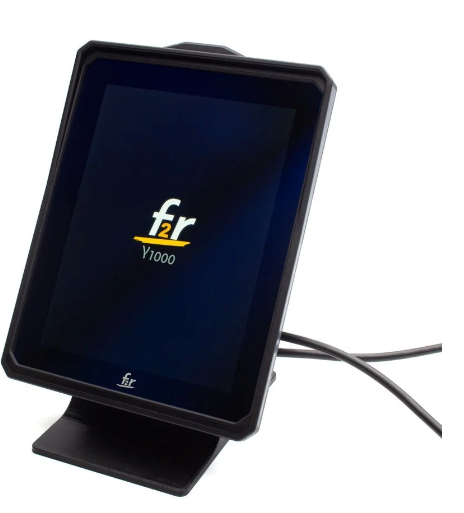

Introducing the F2R Y1000

The F2R Y1000 Digital Roadbook Navigator is a cutting-edge device engineered to revolutionize rally navigation by seamlessly blending traditional roadbook methods with advanced digital technology. Designed to withstand the extreme conditions of Rally Raid events, the Y1000 enhances the navigation experience for both amateur and professional riders.

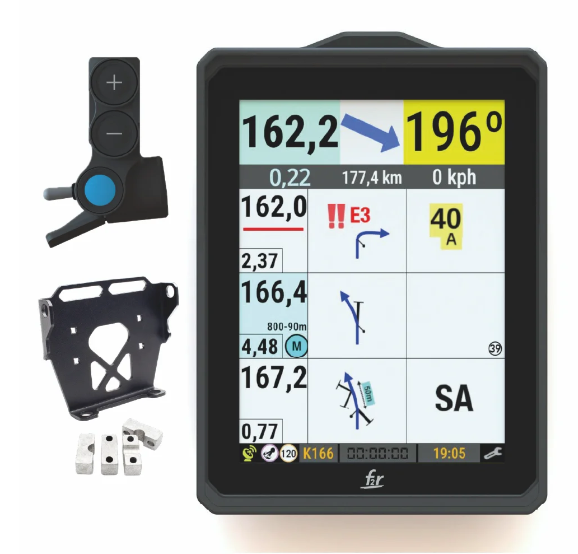

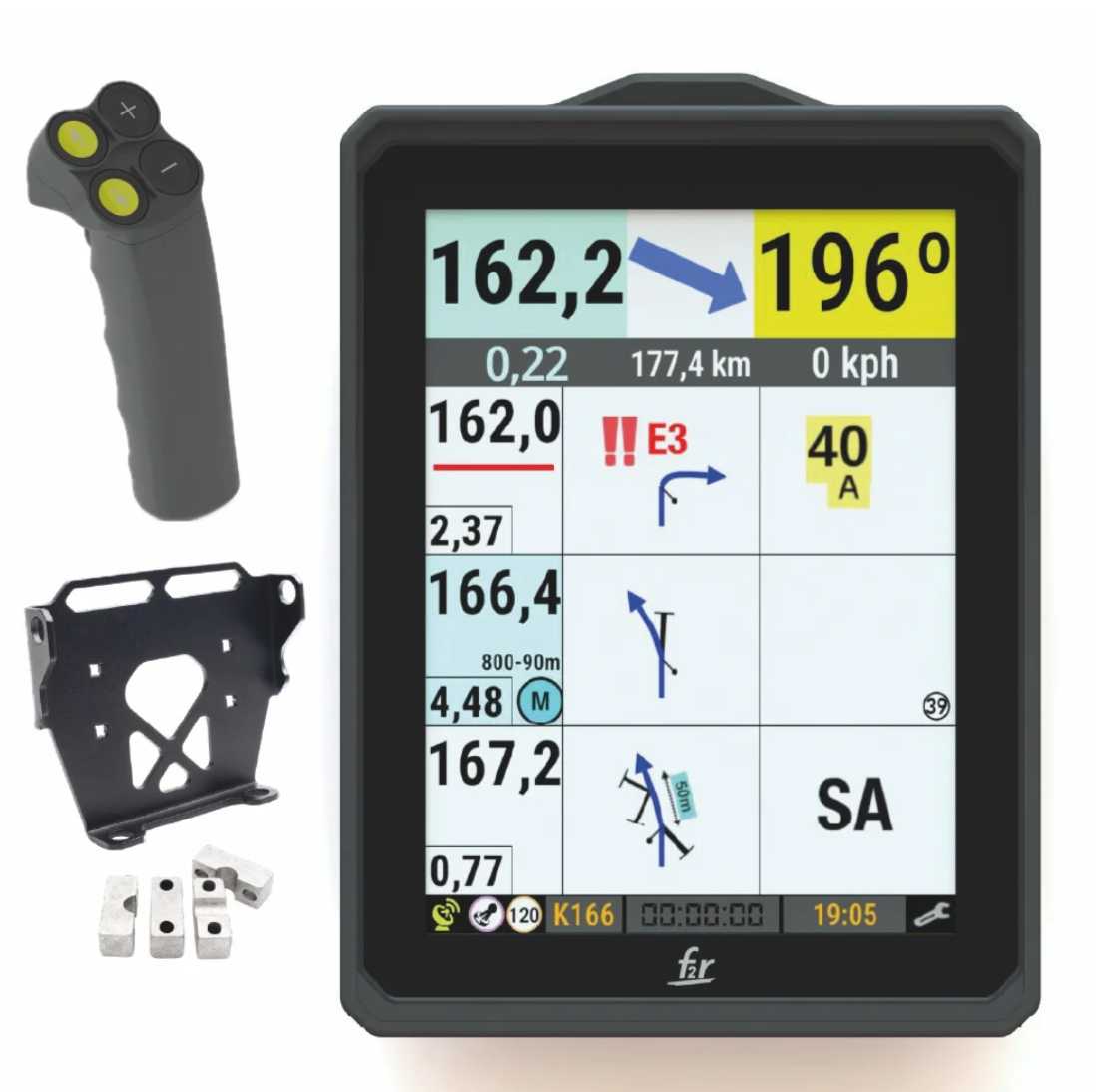

Variants available for motorcycles and vehicles!

Planned sales launch at the end of February 2025.

Standout Features

Durable and Robust Design

• Fully CNC-Machined Aluminum Housing - Designed to resist tough impacts.
• 4mm Display Glass - Built to endure most crashes and helmet impacts.

Optimized Display

• 4:3 Ratio Display - Matches the shape of an A5 Paper Roadbook Roll.
• High-Brightness Display with F2R’s Special Coating - Optimized for visibility in direct sunlight.

Advanced Functionality

• Touchscreen Operable with Gloves
• Fully Waterproof and Heat-resistant - With precision-engineered aluminum housing and integrated heat sink.
• Detachable GammaBox (Android Box) - Enables seamless transfer of information between bikes.

Technical Specifications

• Operating System: Android 13, 4GB RAM, 32GB Storage.
• Connectivity: Wi-Fi, Bluetooth (No SIM card slot, no memory expansion).
• High-Performance Integrated GPS - Refresh rate of up to 25Hz, CEP < 1 meter.

Software and Navigation

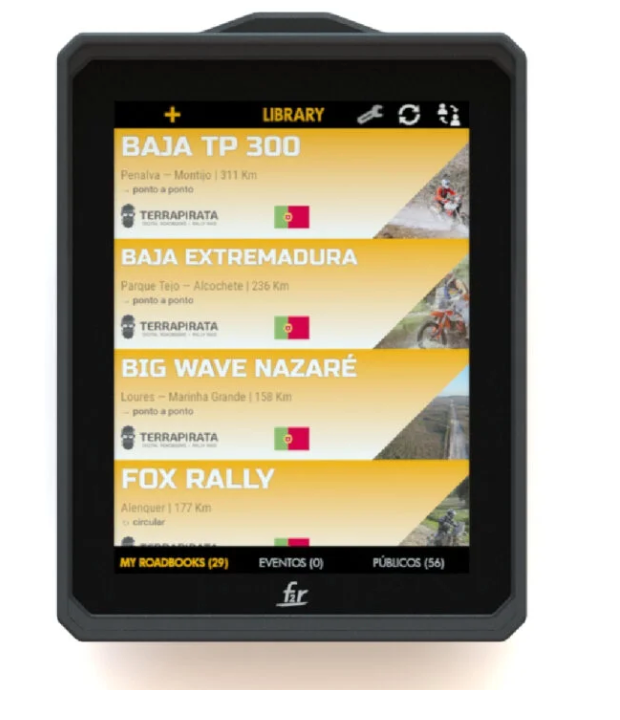

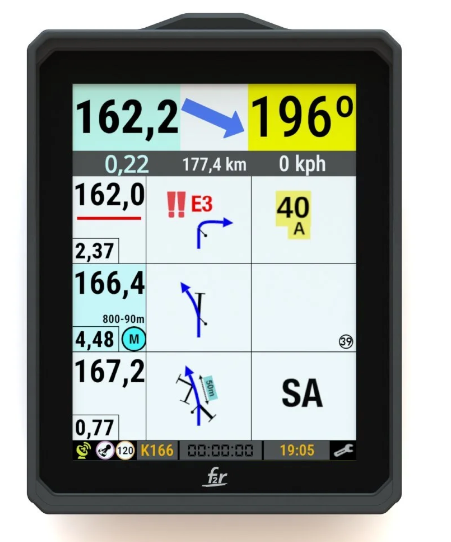

Roadbook Software

• Complies with FIM and FIA regulations.

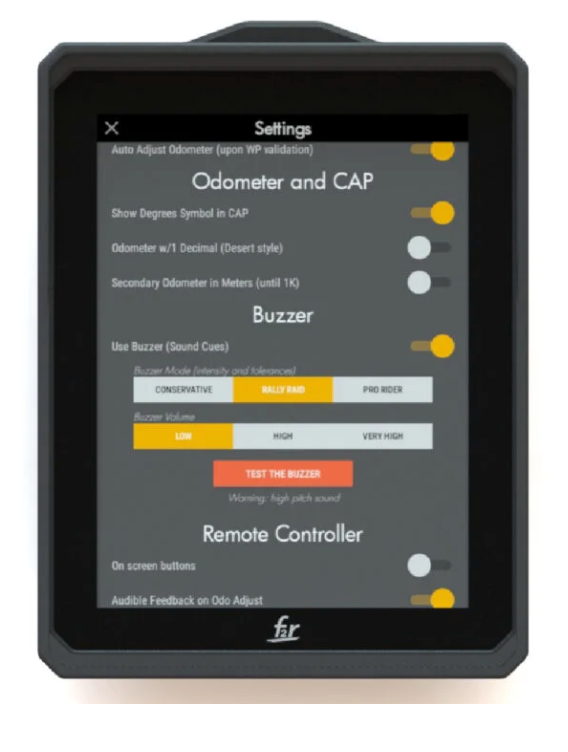

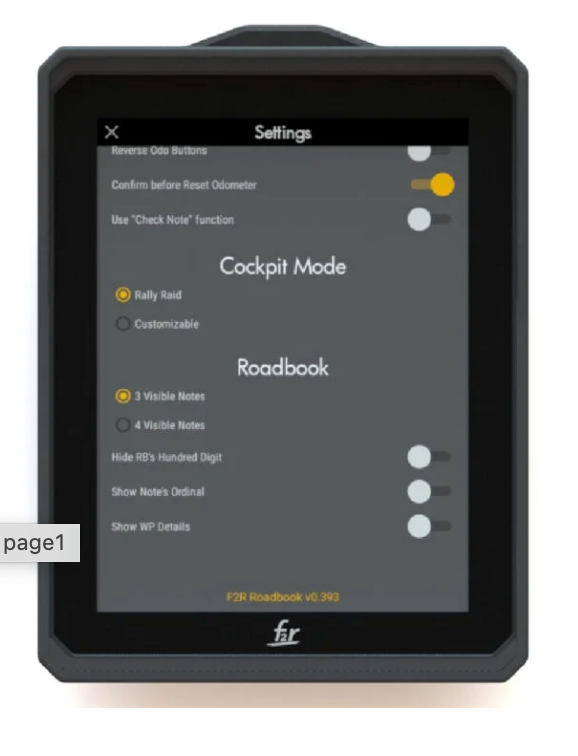

• Includes main and secondary odometers, speedometer, CAP header, waypoint arrow.
• Roadbook scroll note-to-note (optional).
• Accepts Open Rally file formats (.GPX, .RBK).
• Updates via OTA.

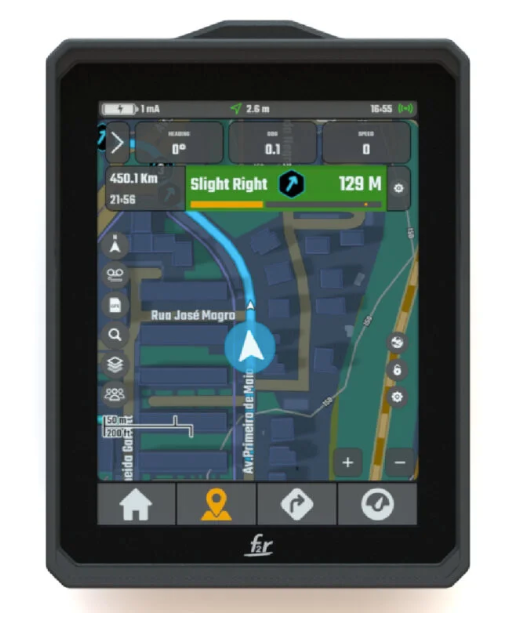

Third-Party Apps

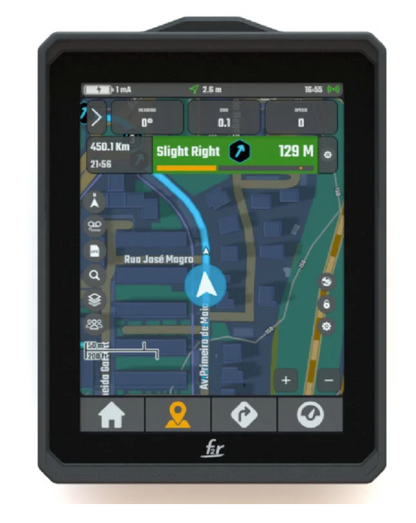

The Y1000 supports the installation of various navigation apps, allowing users to import GPX tracks and download offline maps for extended functionality.

Additional Features

• F2R Power Management System - Alerts users to battery drain or power issues.
• Remote Control - Adapts functionality automatically to different apps.
• Mounting Option: Portrait position only (vertical).
• Warranty: 3-Year Warranty against manufacturing and material defects.

Future Accessories

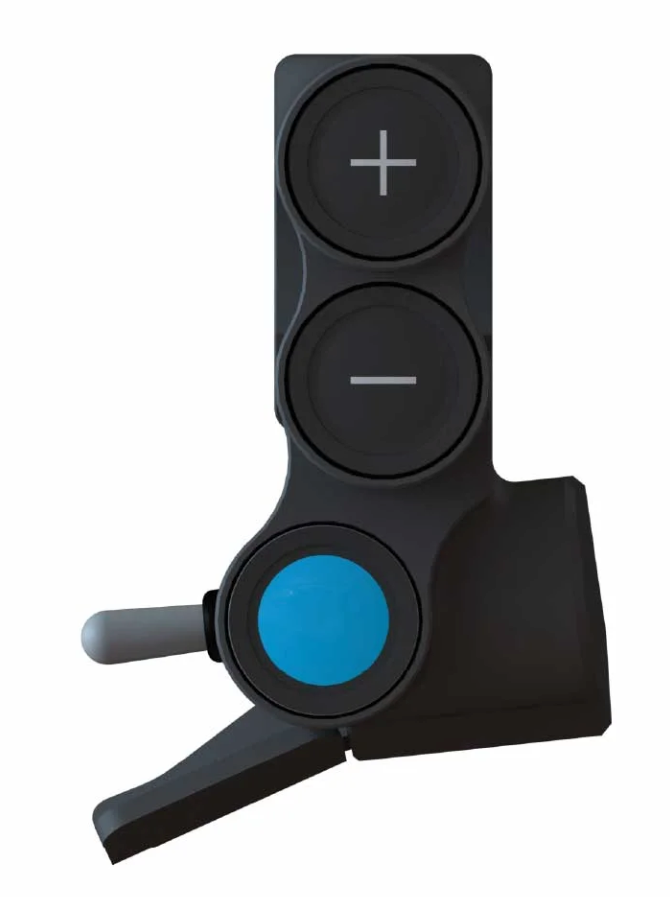

• DR001 – Digital Remote (in production)
• DRA01 – Digital Remote for Autos and SSVs (in production)
• BZ001 – Buzzer (in production)

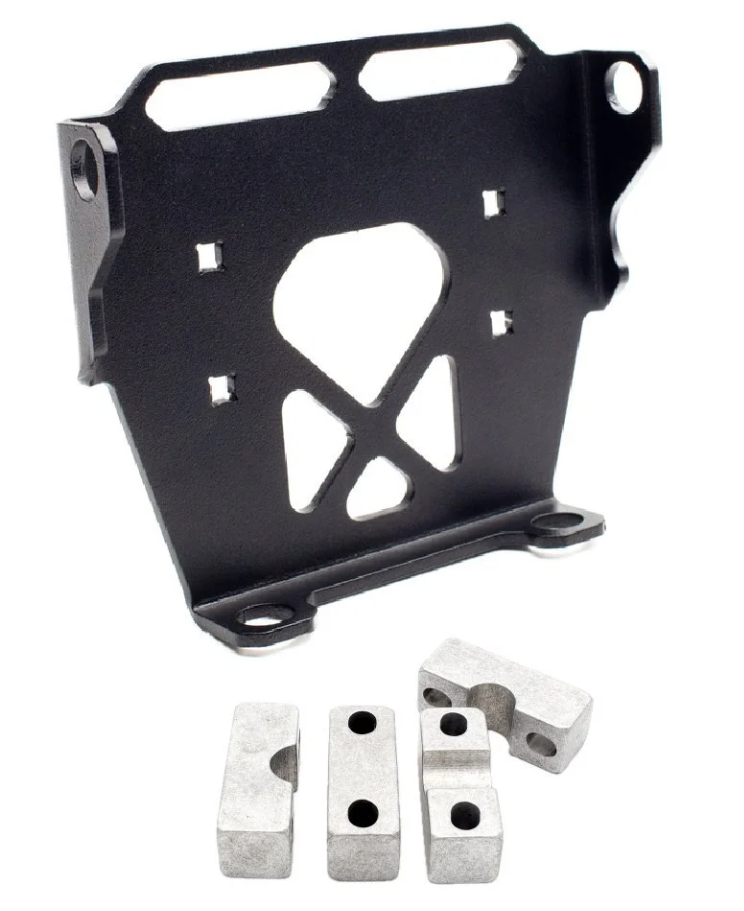

• Y1007 – Mounting Bracket (in production)
• Wired Wheel Sensor Adapter (Confirmed)
• External Emergency Battery Pack (Confirmed)
• Dual Device Bracket for Autos and SSVs (Confirmed)
• Motorcycle Bracket with Extra Protection (Confirmed)
• SIM Card add-on (Planned)

Experience the future of rally navigation with the F2R Y1000 Digital Roadbook Navigator, where durability meets innovation to guide you through every stage of your adventure.
