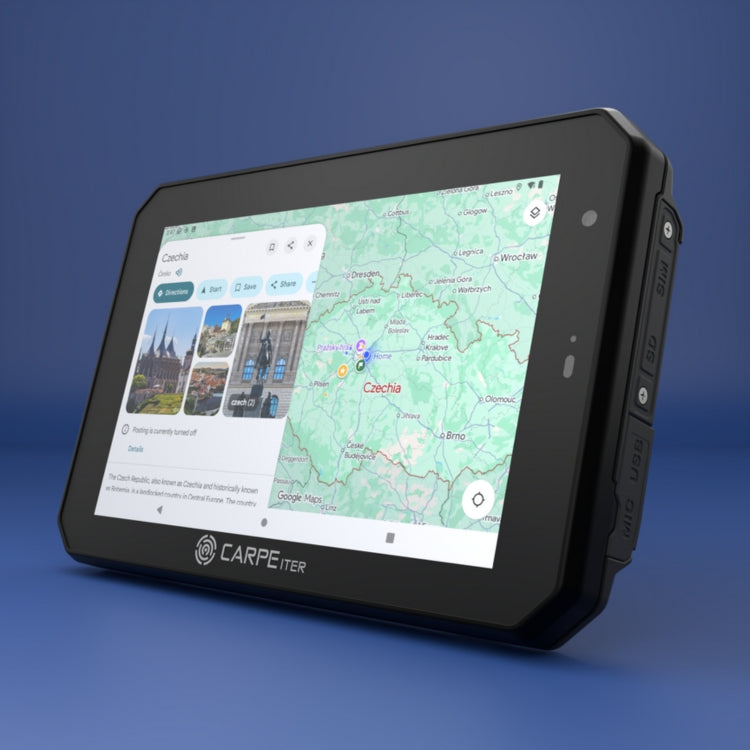

Caretta Navigation Kit - Android Motorcycle Sat-Nav (Detachable)

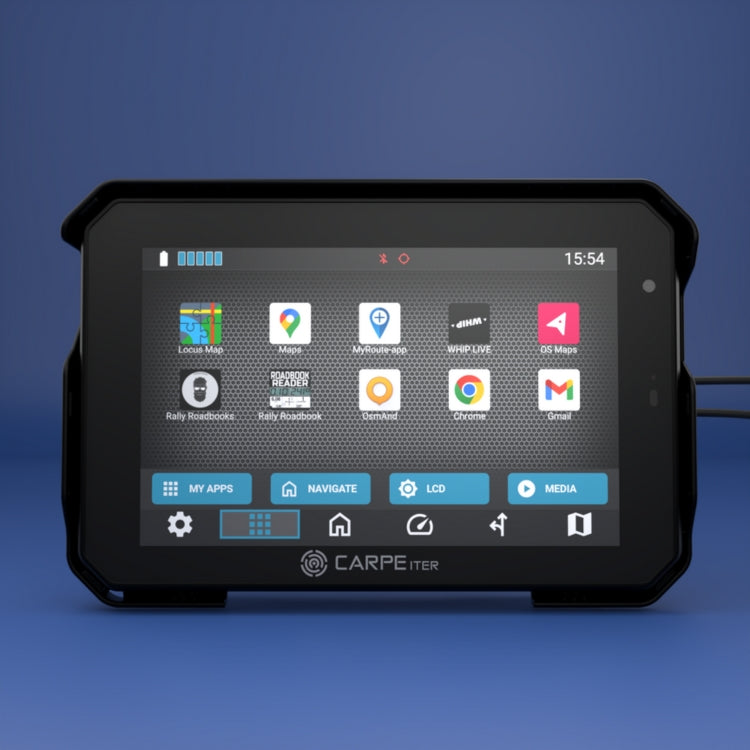

It’s not a tablet. The Caretta Navigation Kit is a purpose-built Android sat-nav system for motorcycles with Google Play Store support. It is designed for riding first — with a detachable quick-release solution so you can remove the device in seconds.

Pre-Order Info

• Orders placed today are expected to ship in the first week of April 2026.
• Limited availability for the shipping date above


What’s Included in the Kit

• Caretta navigation device
• Dedicated cradle for charging and data connection to the bike
• AMPS mounting base for standard 12mm GPS bracket (supports landscape and portrait)
• Universal power cable with 6mm battery loops and fuse box

Why Caretta

Caretta combines rugged, motorcycle-specific hardware (also suitable for quads and side-by-sides) with the versatility of Android. Unlike traditional sat-navs, it supports the Google Play Store, so you can run your preferred navigation apps just like on an Android tablet or phone.

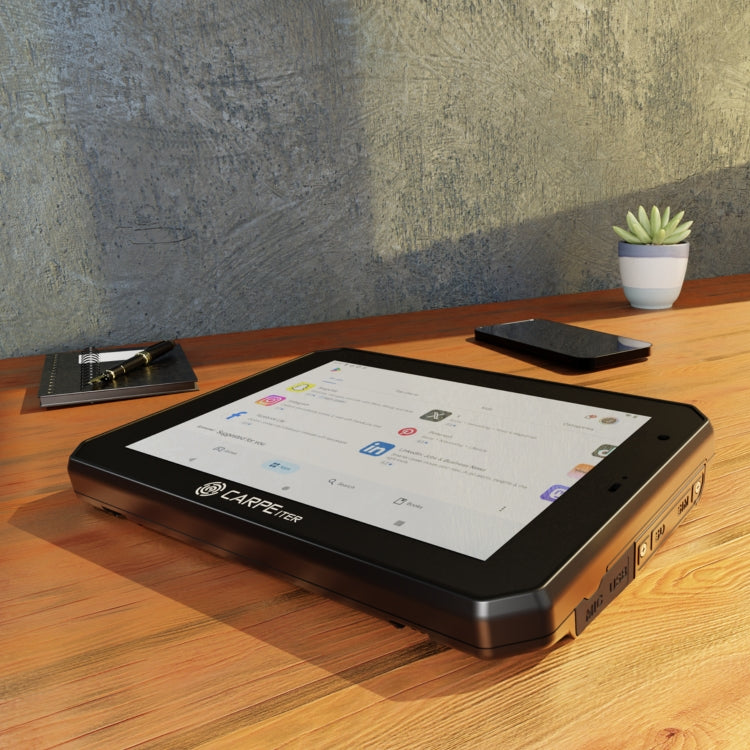

Done riding? Detach it and use it for everyday tasks: messaging, email, web browsing, Spotify, Netflix, games and more.

Design-Specific Features

• Ultra-durable construction: chassis and cradle parts molded from glass-fiber filled nylon

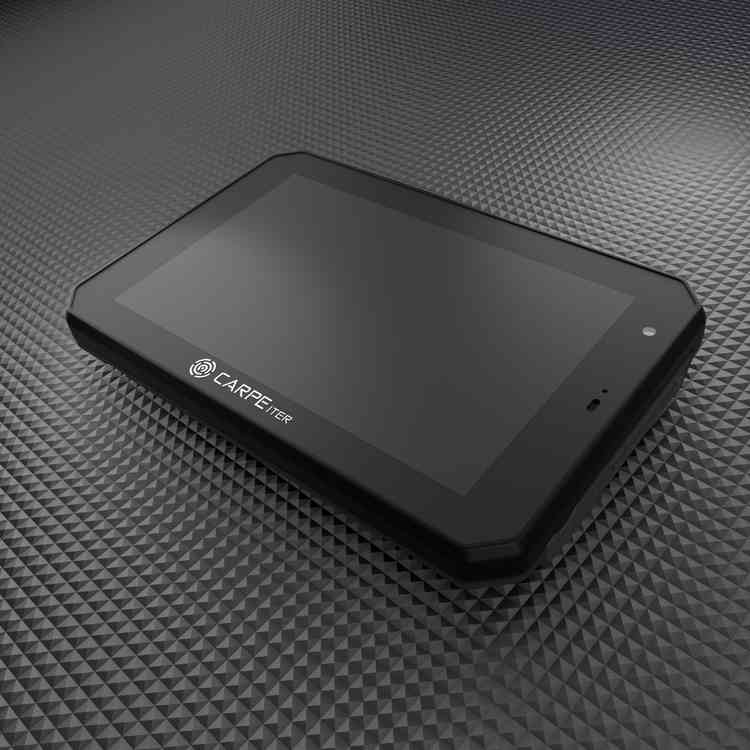

• 7-inch ultra-bright display: 1920×1200 with 2,200 nits brightness
• Pre-installed screen protector: hardened glass with anti-reflective and anti-smudge coating (also available as a spare part)
• All-weather touchscreen: tuned to distinguish a gloved finger from raindrops
• Smart power management: direct 12V input with built-in voltage stabilization
• Extreme heat performance: -20°C to 75°C operation with battery-bypass mode
• Precise GNSS/GPS: dual-band (L1+L5), 10Hz refresh rate, sub-1m accuracy; supports GPS, Galileo, Glonass, Beidou, QZSS and SBAS
• Bike integration: OBD connectivity via direct cable (no Bluetooth dongle); BMW Wonderwheel plug-and-play via adapter cable (GS supported; others in testing)
• Vibration-damped cradle: quick-release locking cradle with “free-float” dampening system

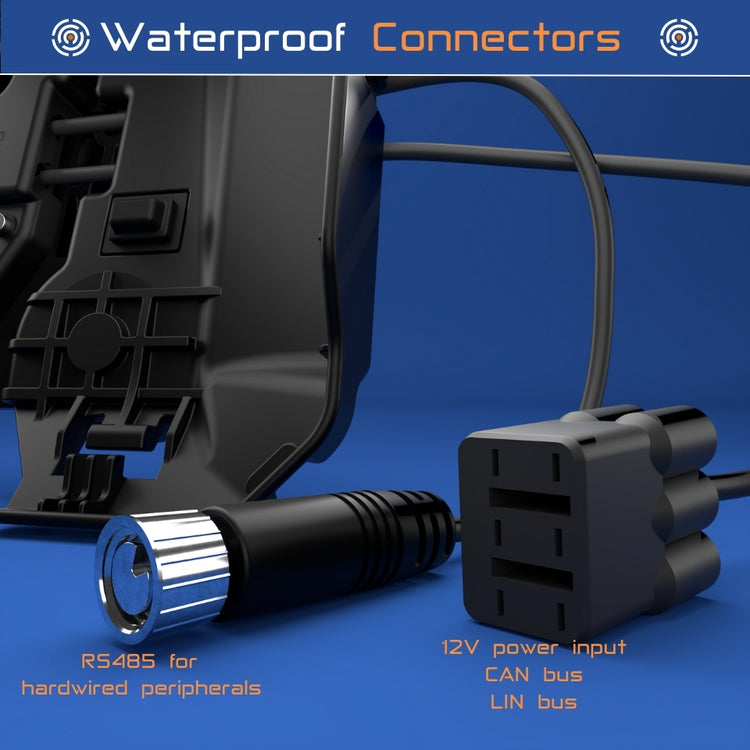

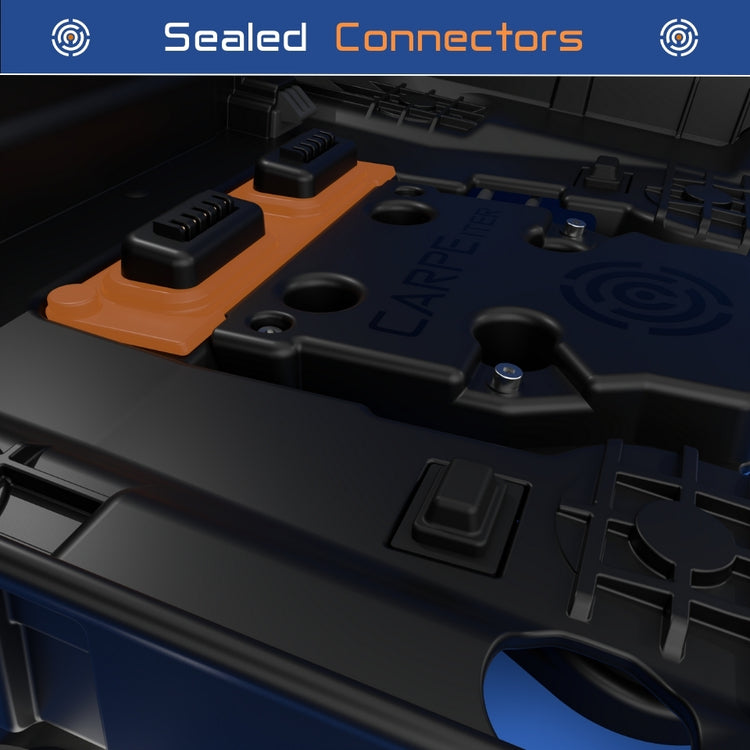

• Superior waterproofing: fully sealed ports and waterproof connectors; exceeds IP69
• Status LED: basic operational status at a glance (user configurable, optional disable)
• Software: free offline worldwide maps and motorcycle-specific functionality in pre-installed NGH

General Features

• Android: ships with Android 14; updates to Android 16 and 18 guaranteed
• Performance: 8-core Qualcomm Kryo CPU with Adreno 610 GPU
• Memory: 8GB RAM / 128GB storage (MicroSD up to 512GB)
• Connectivity: LTE (EMEA), dual SIM (eSIM + nano SIM), dual-band Wi-Fi, Bluetooth 5.1
• Sensors: ambient light, accelerometer, gravimeter (hardware compass), gyro

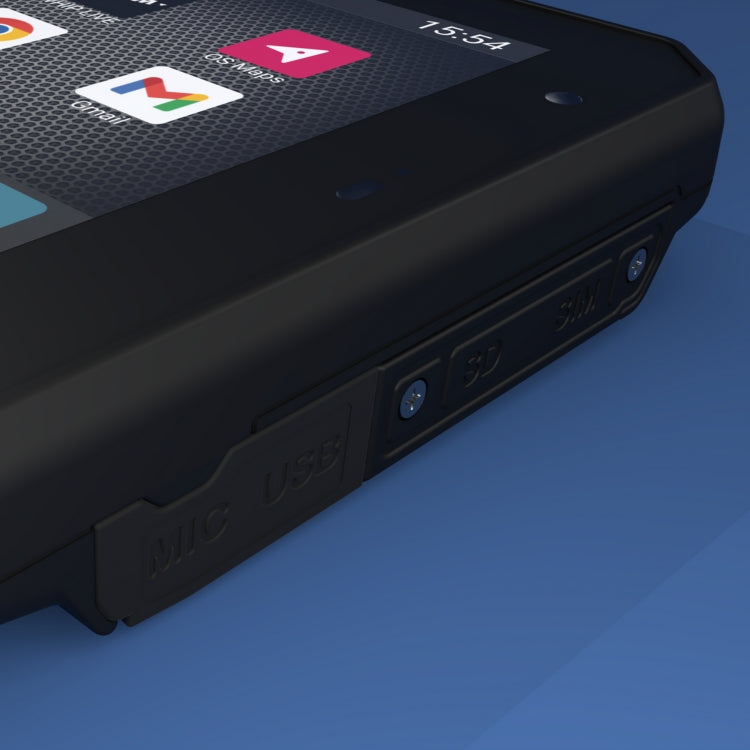

• Ports: USB-C (IP68 waterproof with dust cover), USB 3.1 with OTG
• Audio & Video: front camera, IP68 microphone and speaker
• Battery: 5200mAh; safe to charge with standard USB or QC wall adapter

Mechanical Specs

• Weight: Caretta 630g, Cradle 390g
• Dimensions (Caretta): 194×129×22–33mm (triangular cross-section)
• Dimensions (Cradle): 203×165×50–56mm (triangular cross-section)

LTE Compatibility (Important)

Caretta’s LTE section is designed for the EMEA region (Europe, Middle East, Africa). Outside EMEA, LTE compatibility is not guaranteed and Caretta should be considered Wi-Fi only. If in doubt, check with your GSM operator before purchasing.

OBD Adapter Cables (Supported)

• KTM / Husqvarna: all CAN bus models with 6-pin socket
• Yamaha: all CAN bus models with 4-pin socket
• Support for other bikes is in planning

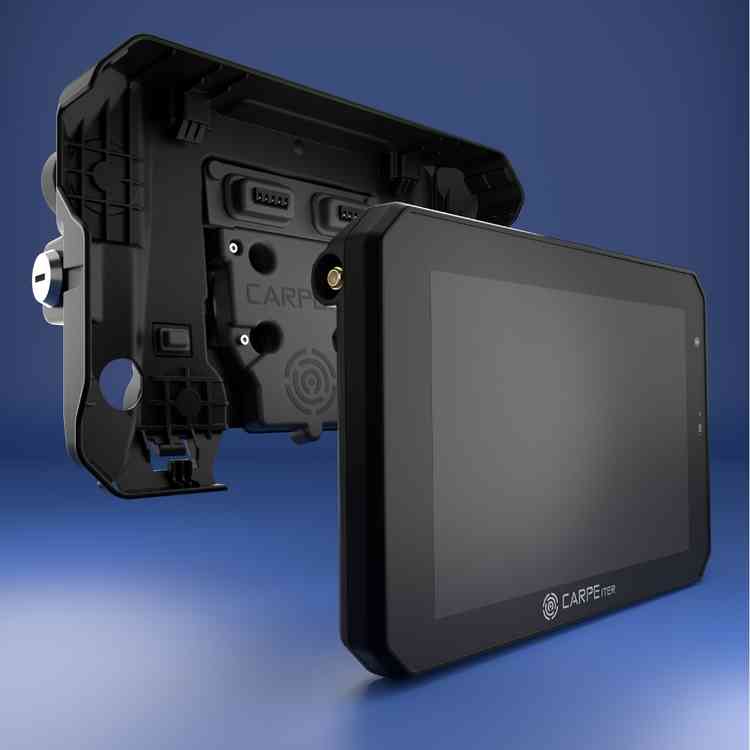

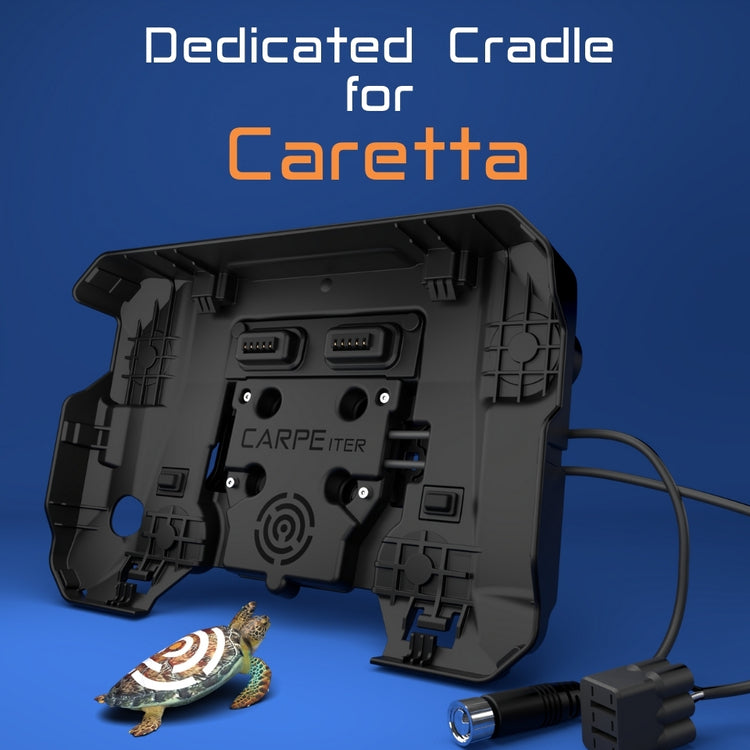

The Smart Cradle

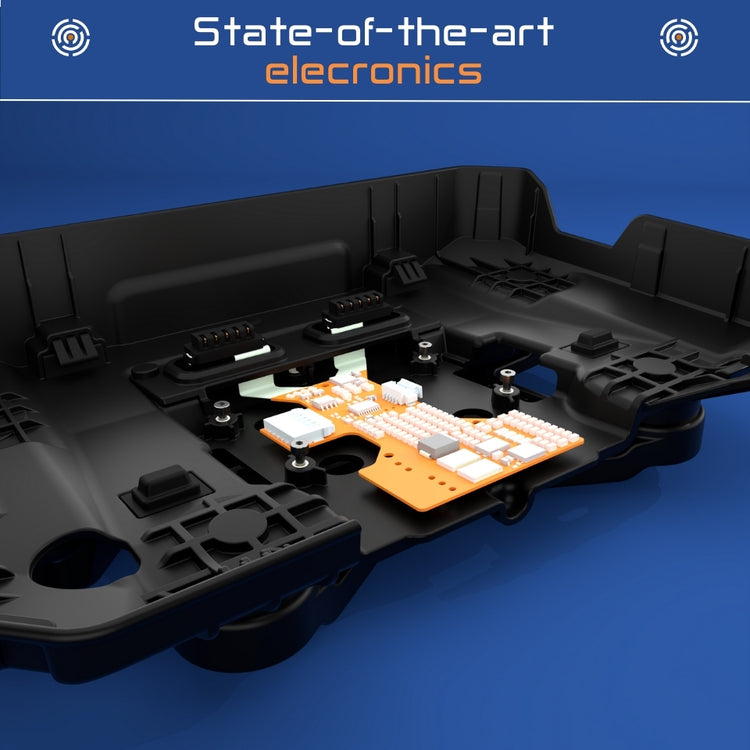

This is not just a holder. The cradle includes electronics designed for direct motorcycle integration and enhanced safety.

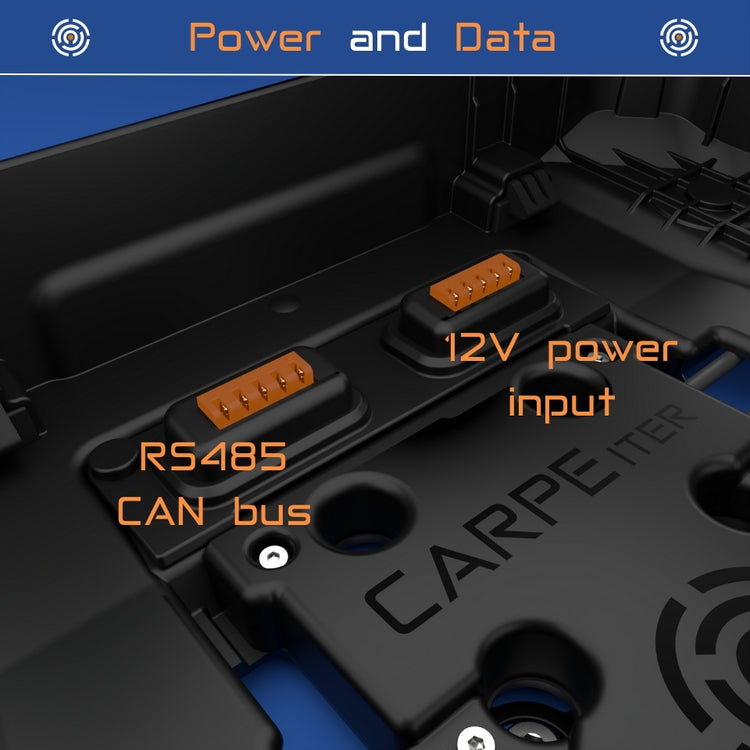

• Smart power management: 12V connection with voltage stabilization, automatic sleep mode and protections (reverse polarity, overvoltage, overheat); auto-reset fuse included
• Safety logic: connector pins are live only when Caretta is inserted

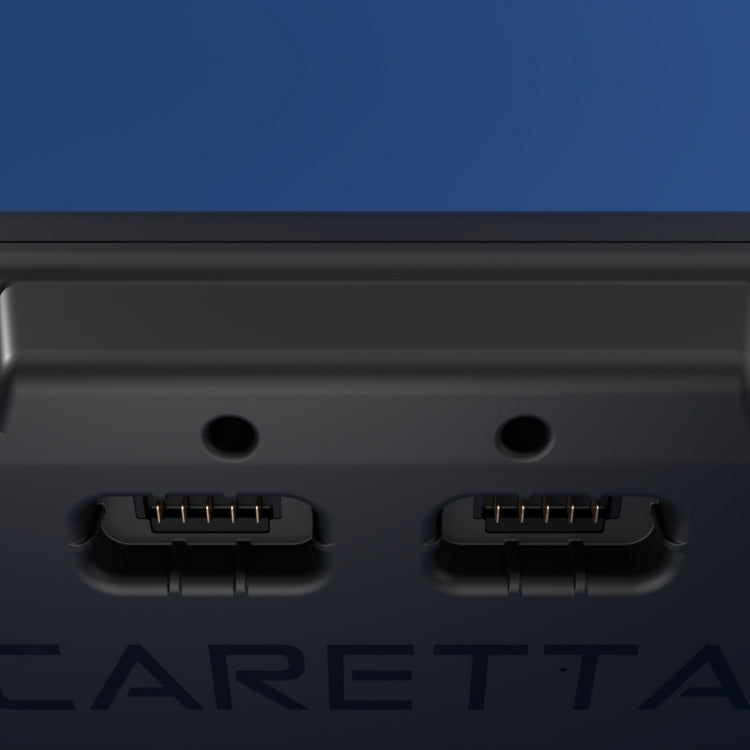

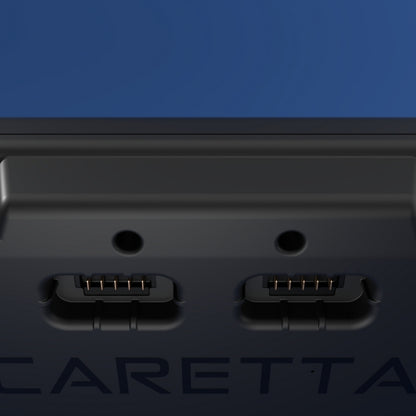

• Quick-release blade connectors: instant docking on/off in seconds
• Hardwired integration: direct connectivity for controllers/accessories, OBD via Carpe Iter adapter cables, BMW via Carpe Iter BMW adaptor cable (other models planned)

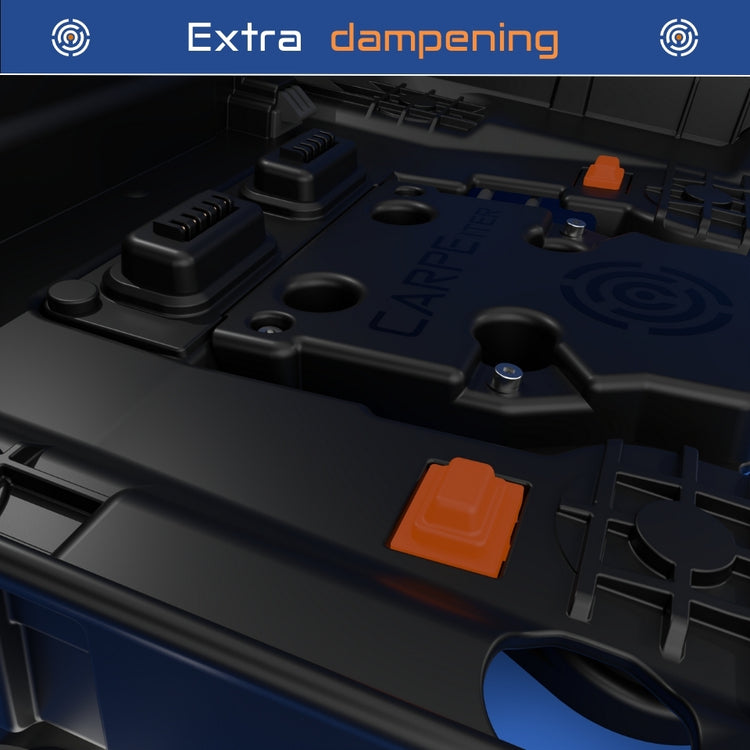

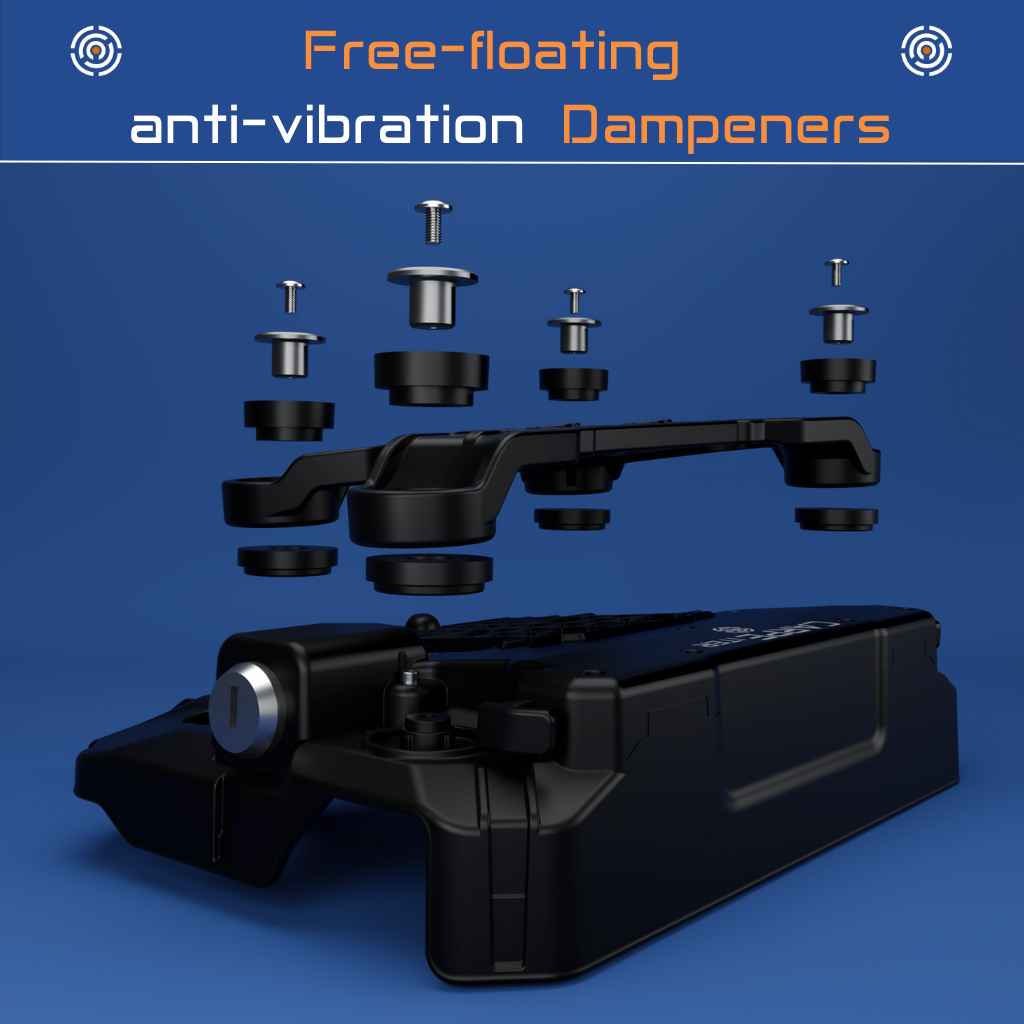

• Advanced vibration isolation: “free-float” system with silicone dampers

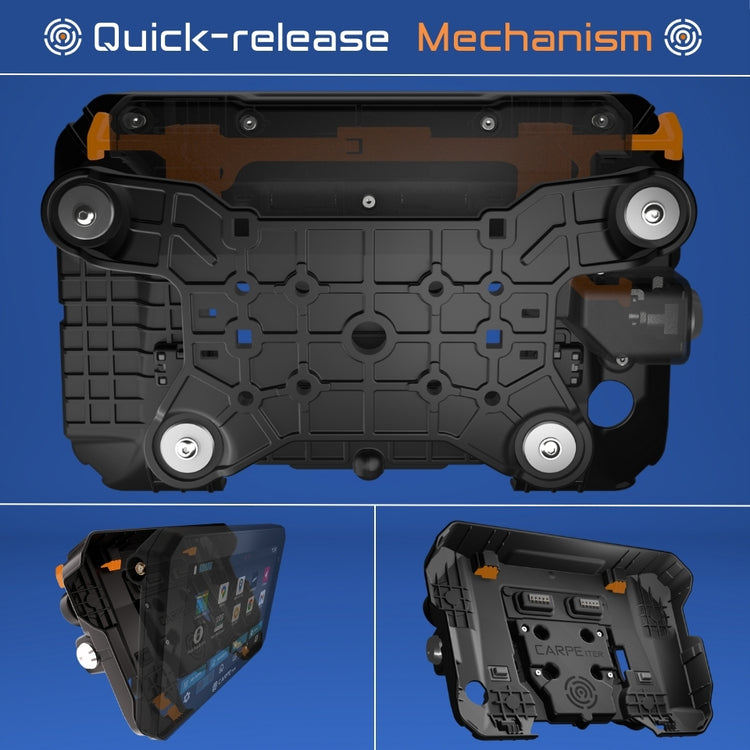

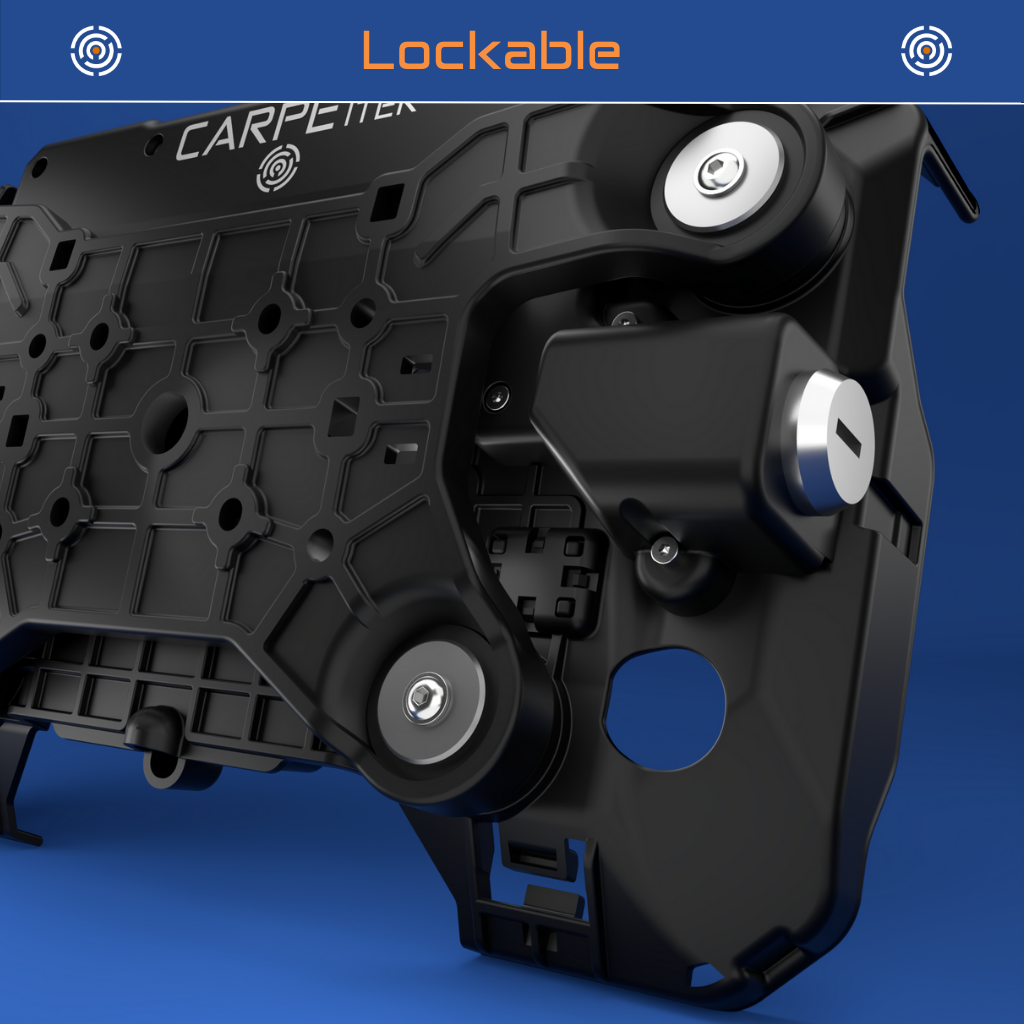

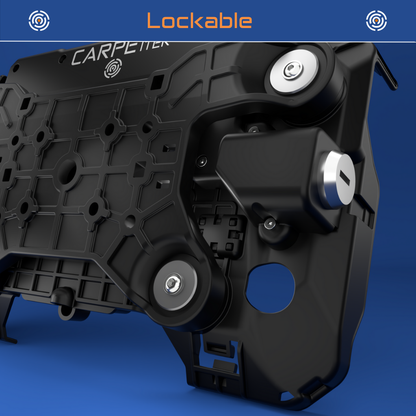

• Smart retention: slide-and-click insertion, push-lever release; lockable; manual override for muddy conditions
• Installation: front-facing mounting holes for easier setup

Mounting Notes

For default landscape orientation, any mounting solution can be used. For portrait orientation, you need the Carpe Iter AMPS base for Caretta, which compensates for the triangular shape of Caretta and the cradle.
